150KVA Packaged Generator
Details
150kVA/120kW 3-phase
90kW Single phase
The Shindaiwa DGK150D combines design simplicity with uncompromising standards of engineering and manufacturing excellence. This powerful generator set features a rated output of 150kVA / 120kW and provides both single and three phase voltage settings. It is powered by a rugged, fuel-efficient Isuzu diesel engine and is exceptionally quiet thanks to advanced sound-absorbing technology. The durable all-weather outer enclosure provides protection against the elements; when outfitted with the optional ESI-exclusive Re-Air attachment, the DGK150D will perform reliably in the coldest of temperatures.
Features & benefits
- Rugged, fuel-efficient Isuzu diesel engine
- Ultra Quiet Technology for class-leading sound-level reduction
- Lightweight and exceptionally compact to fit into tight spaces
- Provides both single and three-phase output

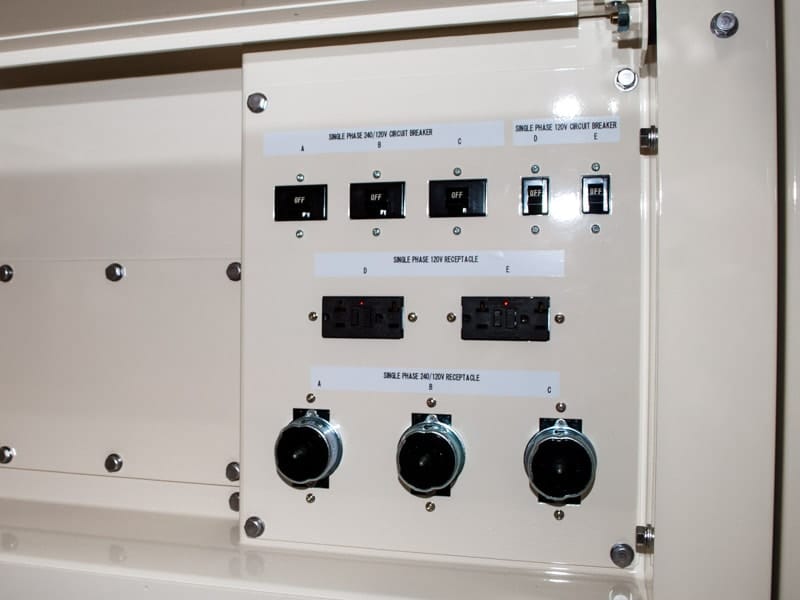

- Single-phase 240V output available in all voltage settings
- Low oil pressure and high coolant temperature result in automatic shut-down
- Thermal relay opens main circuit breaker to protect generator in case of overload

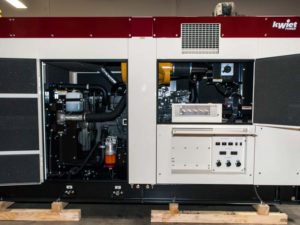

- Durable all-weather outer enclosure with powder coated exterior and stainless steel fasteners
- Two-way tank valve for easy connection with auxiliary tanks
Available mounting
- Skid mounted (standard)
- Trailer mounted
Options
- ESI-exclusive Re-Air attachment regulates airflow to maintain a constant temperature within the enclosure
Specifications
| Alternator | |
|---|---|
| Generator type | Rotating field, brushless 3-phase synchronous alternator |
| Rated output | 150 kVA120 kW |
| Voltage | 208 / 480 V Three-phase120 / 240 / 277 V Single-phase |
| Current | Three-phase 208V: 416AThree-phase 480V: 180ASingle-phase 120V: 361 x 2 (zig-zag)Single-phase 240V: 361 (zig-zag) |
| Rated frequency | 60 Hz |
| Winding | 3-phase, 4-wire Star with neutral / Zig-zag |
| Power factor | 80% |
| Insulation class | F |
| Excitation | Self-excitation (Brushless) |
| No. of poles | 4 |
| Engine | |
| Type | Vertical water-cooled 4-cycle diesel |
| Model | Isuzu 6HK1 |
| No. of cylinders | 6 |
| Bore x stroke | 4.5 x 4.9 in (115 x 125 mm) |
| Continuous rated output | 142 kW 190 HP |
| Rated speed | 1800 rpm |
| Displacement | 475.4 cu in (7.790 L) |
| Combustion system | Direct fuel injection w/ turbo charger |
| Cooling method | Radiator |
| Lubricating method | Forced lubrication |
| Starting method | Electric start |
| Fuel | Diesel |
| Fuel capacity | 74 gal (280 L) |
| Oil | CD class |
| Oil capacity | 10 gal (38 L) |
| Coolant capacity | 6.3 gal (23.8 L) |
| Starting motor capacity | 24V – 5.0 kW |
| Charging dynamo capacity | 24V – 50A |
| Battery | 105E41R x 2 |
| Battery capacity | 12V – 100AH |
| Unit | |
| Length | 135.8 in (3450 mm) |
| Width | 48.8 in (1240 mm) |
| Height | 72.8 in (1850 mm) |
| Dry weight | 6504 lb (2950 kg) |
| Installed weight | 7187 lb (3260 kg) |
Accessories
Coming soon.
Model #
DGK150
Manufacturer
Shindaiwa
Category
Generators
Industry
Aviation, Construction, Emergency Prepardness, Lodges, Mining, Oil & Gas, Remote Logistics, Telecommunications
Available for Rent in ALASKA
Yes
Available for Rent in North Dakota
Yes
Available for Sale in Alaska
Yes
Available for Sale in North Dakota
Yes
Highlight Specs
Continuous Three-Phase Output (KVA): 150
Output Phase: 1Ø or 3Ø
Rated Speed (60hz): 1800 RPM
Engine: Isuzu 6HK1
Emission Certification: EPA Tier 3
Configuration: Packaged Enclosure
