28KW Generator
Details

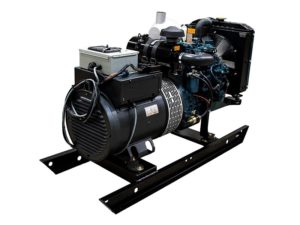

Powered by a Kubota diesel engine, this durable generator set produces 28.0 kilowatts of prime power output. The engine and generator are directly coupled and mounted on a rugged steel skid. All components are suitable for prime or intermittent usage. The entire set is thoroughly load tested prior to shipment. UL approved construction.
Standard engine
- Kubota diesel model V3300-E3B6, in-line, four-cylinder engine
- Mechanical speed governing provides > 5% speed regulation, no load to full load
- EPA “Interim tier 4”
- Liquid cooled with industrial grade radiator and belt-driven blower fan
Controls & accessories
- Key start panel with oil pressure, coolant temperature, hour meter, and glow plug indicator
- Manual safety shutdow override, fuse protection
- Safety shutdowns, energized-to-run, for low oil pressure/high coolant temperature
- Four anti-vibration mounts between generator set and base frame
- Electric fuel transfer and priming pump (12 VDC)
- Battery cables for 12 VDC starting system
Specifications
| Engine technical information | |
|---|---|
| Manufacturer | Kubota |
| Model | V3300-E3B6 |
| Cylinders | 4 |
| Bore x Stroke | 3.86 x 4.33 in |
| Displacement | 3620cc (202 cu in) |
| Comp. ratio | 22.6:1 |
| Engine weight | 619 lb dry |
| Fuel system | |
| Fuel type | #2 Diesel or #1 ULSD |
| Injection pump | Bosch PFR |
| Nozzle type | Throttle type |
| Transfer pump | Electric, 12 VDC |
| Fuel lift | 1 meter (3.3 ft) |
| Suction fitting | 3/8″ Male NPT |
| Return fitting | 3/8″ Male NPT |
| Specific fuel consumption | 2.50 gph @ full load1.30 gph @ half load(Actual fuel consumption varies with site conditions and fuel energy content.) |
| Lube oil system | |
| Grade | API classification CF or other approved.(See owner’s manual) |
| Capacity | 3.49 US gal |
| Filter | Full flow, spin on |
| Air intake system | |
| Filter | Replaceable element |
| Combustion air | 55.7 cfm |
| Total system restriction | 20″ H20 |
| DC Electrical system | |
| Starter | 12V, 3.0 kW |
| Alternator | 12V, 45 Amp |
| Glow plugs location | Combustion chambers |
| Battery required | 12V 650 CCA equiv, min |
| Run solenoid | 12V Energize to run |
| Ancillary equipment | |
| Mounting | Steel base with mounting holes |
| Isolators | Four composite mounts |
| Generator technical information | |
| Manufacturer | Mecc Alte |
| Model | ECP 3-3L |
| Construction | Four pole, brushless, open drip-proof (IP23), single bearing |
| Excitation | Dedicated auxilliary winding |
| Cooling air flow | 251 cfm |
| Leads | 12 |
| 60 Hz voltages (continuous) | 240 1-phase: 110.9 Amps208 3-phase: 92.5 Amps480 3-phase: 40.1 Amps |
| Power factor | Single phase ratings @ 1.0 PFThree phase ratings @ 0.8 PF |
| Voltage reg. | DSR digital type +/- 1% NL -> FL |
| Temperature rise | 105C rise prime |
| Tel. interference | THF <2% |
| Winding pitch | Two thirds |
| Control system | Self-excited |
| Cooling system | |
| Radiator | Finned tube type |
| Material | Copper core, soldered tanks |
| Pressure | 12.9 psi max |
| Fan type | Blower, nylon |
| Water pump | Gear case mounted |
| Type | Centrifugal, belt drive |
| Thermostat | Wax pellet type |
| Recommended coolant | 50/50Use low silicate ethylene glycol and high quality water. Consult manufacturer for details. |
| Cooling air required | 3338 cfm |
| Exhaust system | |
| Muffler type | Industrial grade |
| Mounting | Vertical with up outlet |
| Restriction | 1.5 in Hg max |
| Weight & dimensions | |
| Please contact salesperson for weight and dimensions. |
Accessories
Coming soon…
Model #
KPG-28
Manufacturer
ESI
Category
Generators
Industry
Aviation, Construction, Emergency Prepardness, Lodges, Mining, Oil & Gas, Remote Logistics, Telecommunications
Available for Rent in ALASKA
No
Available for Rent in North Dakota
No
Available for Sale in Alaska
Yes
Available for Sale in North Dakota
Yes
Highlight Specs
Continuous Three-Phase Output (KVA): 33
Output Phase: 1Ø or 3Ø
Rated Speed (60hz): 1800 RPM
Engine: Kubota V3300
Emission Certification: EPA Tier 3
Configuration: Open Skid
