60KVA Packaged Generator
Details
60kVA/48kW 3-phase
36kW Single-phase

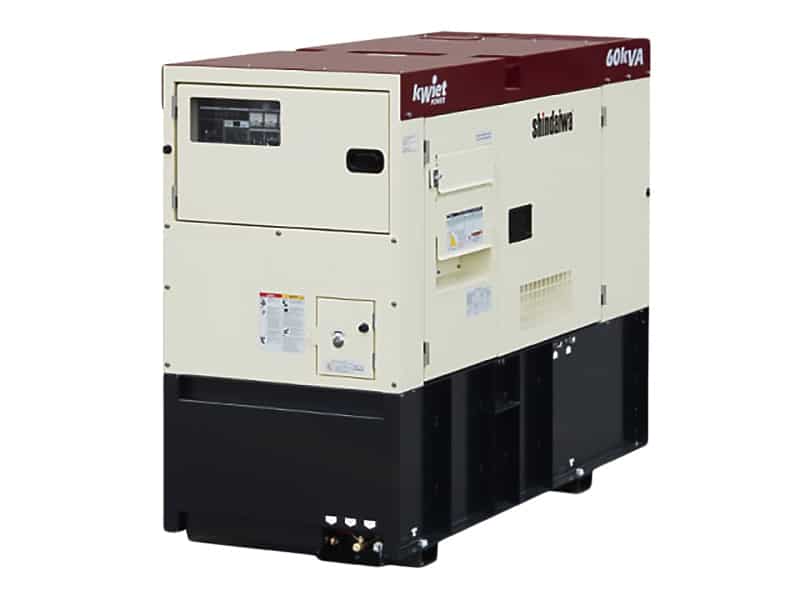

The Shindaiwa DGK60D delivers three phase and dual-voltage single-phase power simultaneously thanks to patented Simul-Phase Technology. This generator set is powered by a rugged, fuel-efficient Kubota diesel engine and features a rated output of 60kVA / 48kW. It is exceptionally quiet thanks to advanced sound-absorbing technology. The durable all-weather outer enclosure provides protection against the elements; when outfitted with the optional ESI-exclusive Re-Air attachment, the DGK60D will perform reliably in the coldest of temperatures.
Features & benefits

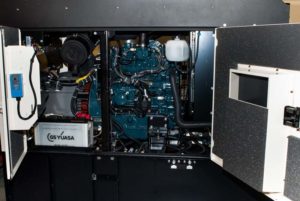

- Rugged, fuel-efficient Kubota diesel engine
- Simul-Phase Technology delivers simultaneous three-phase and dual-voltage single phase power
- Two-way tank valve for easy connection with auxillary tanks
- Ultra Quiet Technology for class-leading sound-level reduction
- Lightweight and exceptionally compact to fit into tight spaces
- Connects easily and is simple to operate
- Large 111 gallon fuel tank
- Eco-mode running means less fuel consumption
- Spill containment
- Low oil pressure and high coolant temperature automatic shut-downs
- Durable all-weather outer enclosure with powder coated exterior and stainless steel fasteners
Available mounting
- Skid mounted (standard)

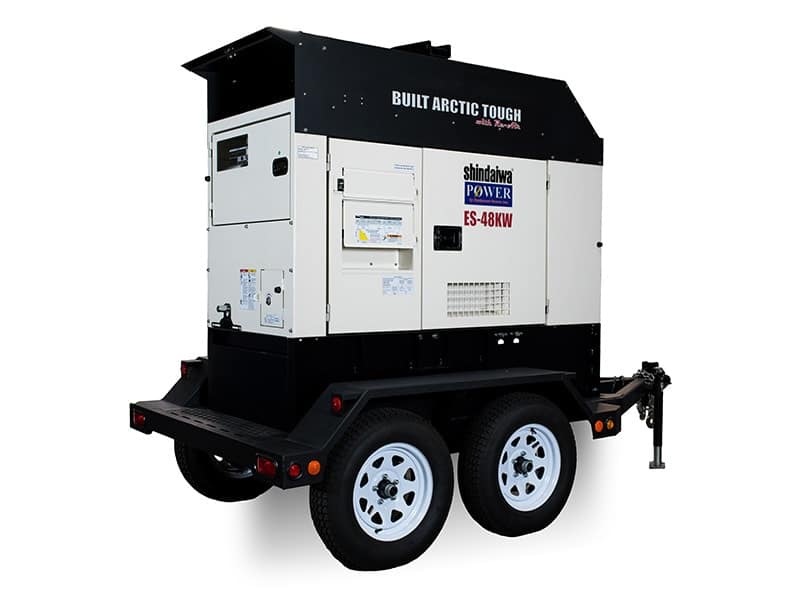

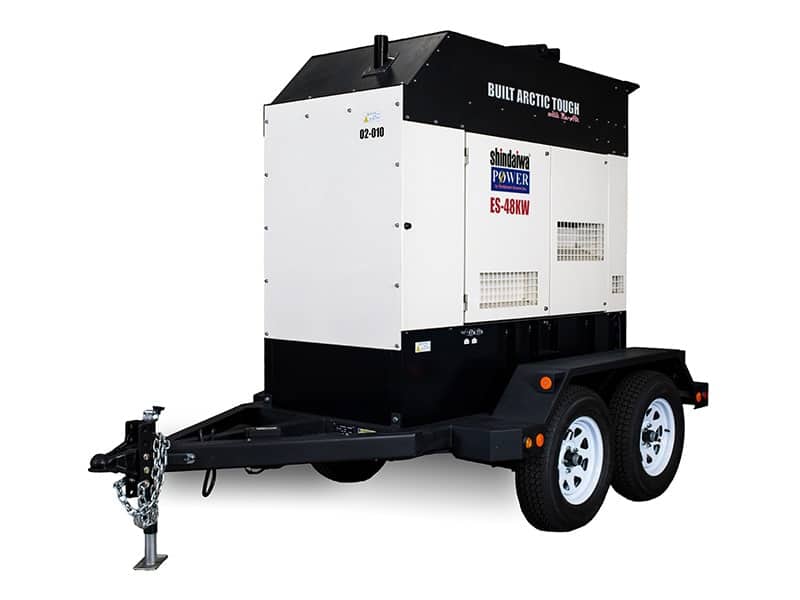

- Trailer mounted
Options

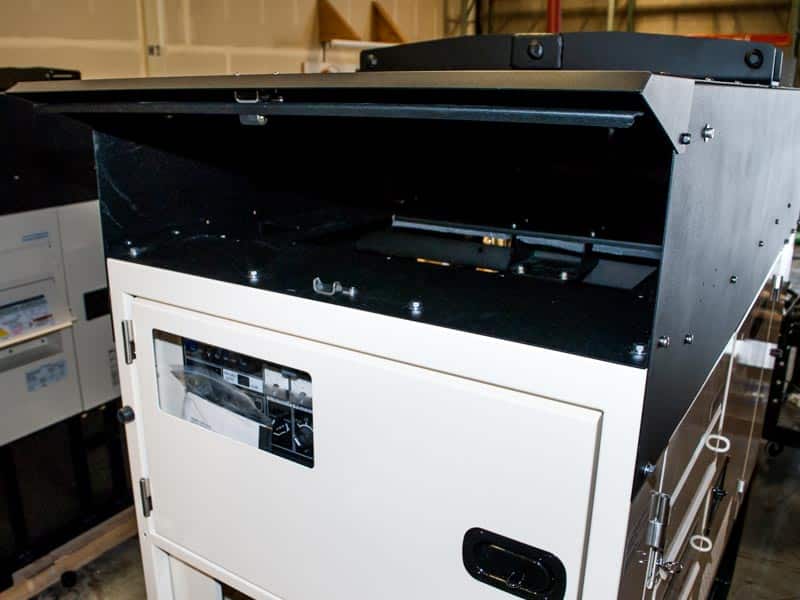

- ESI-exclusive Re-Air attachment regulates airflow to maintain a constant temperature within the enclosure
Specifications
| Alternator | |
|---|---|
| Generator type | Revolving field brushless ACSimultaneous 3-Phase 120/240V1 Phase |
| Rated frequency | 60 Hz |
| Rated output | Three-phase: 60 kVA / 48 kWSingle-phase: 36/[18]*1 kVA / 36/[18]*1 kW |
| Rated voltage | Three-phase: 208, 240, [480]*1 VSingle-phase: 120, 139, 240, [277]*1 V |
| Rated current | Three-phase 208V: 144AThree-phase 240V: 144AThree-phase 480V: 72ASingle-phase 120V: 150 x 2 [75 x 2]*1Single-phase 240V: 150 [75]*1 |
| Power factor | Three-phase 0.8Single-phase 1.0 |
| Insulation class | F |
| Excitation | Self-excitation (Brushless) |
| No. of poles | 4 |
| Engine | |
| Type | Vertical water-cooled 4-cycle diesel |
| Model | Kubota V3800DI-TI |
| No. of cylinders | 4 |
| Bore x stroke | 3.94 x 4.72 in (100 x 120 mm) |
| Continuous rated output | 77 hp |
| Rated speed | 1800 rpm |
| Displacement | 230 cu in (3.769 L) |
| Combustion system | Direct injection (Turbo-charged) |
| Cooling method | Radiator |
| Lubricating method | Forced lubrication |
| Starting method | Electric start |
| Fuel | #2-D EPA regulation |
| Fuel capacity | 111 gal (420 L) |
| Oil | CF class or higher |
| Oil capacity | 3.5 gal (13.2 L) |
| Coolant capacity | 3.3 gal (12.5 L) |
| Starting motor capacity | 12V – 3.0 kW |
| Charging alternator capacity | 12V – 960W |
| Battery capacity | 12V – 92AH |
| Unit | |
| Length | 78 in (1970 mm) |
| Width | 35 in (880 mm) |
| Height | 64 in (1630 mm) |
| Dry weight | 2843 lb (1290 kg) |
| Installed weight | 3703 lb (1680 kg) |
Outputs shown in above *1 are measured when the voltage selector switch is set to 240V.
Accessories
Coming soon.
Model #
DGK60
Manufacturer
Shindaiwa
Category
Generators
Highlight Specs
Continuous Three-Phase Output (KVA): 60
Output Phase: 1Ø or 3Ø
Rated Speed (60hz): 1800 RPM
Engine: Kubota V3800
Emission Certification: EPA Tier 3
Configuration: Packaged Enclosure
