Details

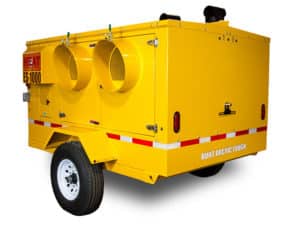

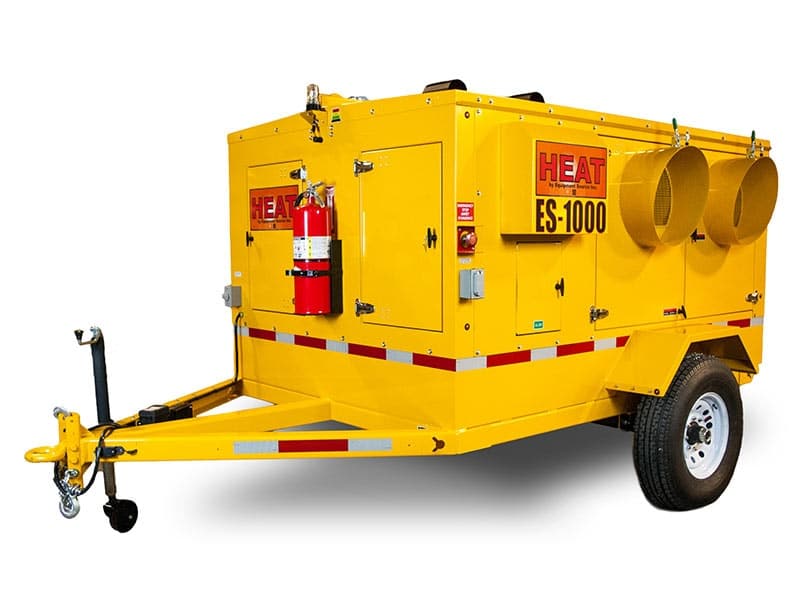

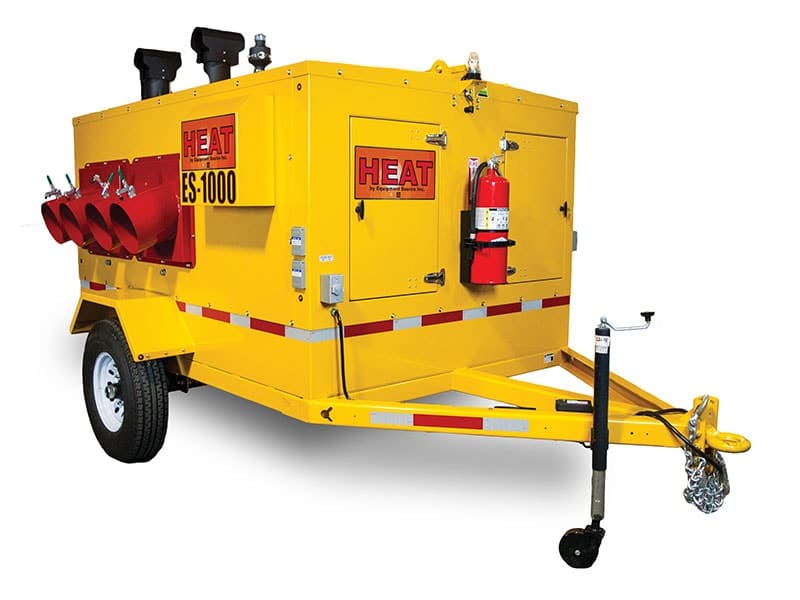

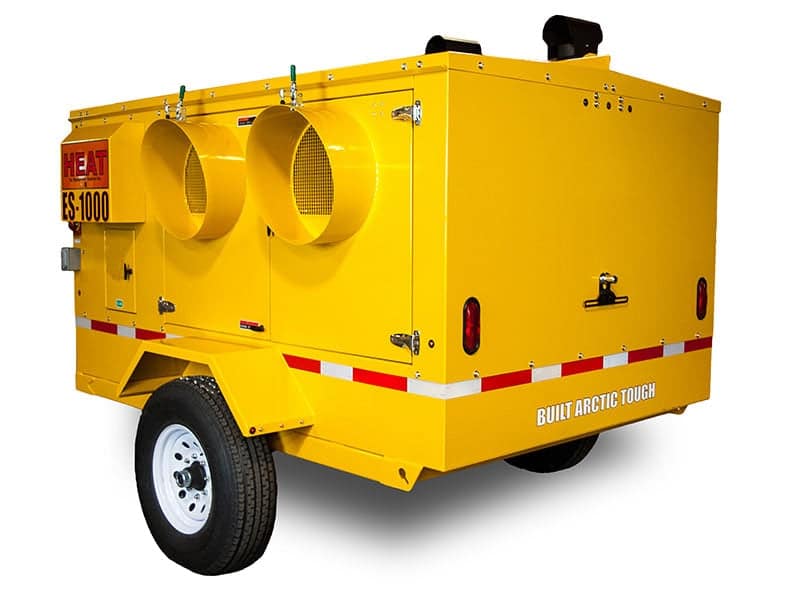

Flexible and powerful, the dual-burner ES1000 indirect fired air heating system provides maximum heat under full operation with the option to run a single burner for lighter applications.

Powered by Kubota, the world’s leading diesel engine manufacturer, the twin Flagro 400 indirect fired heaters generate a combined output of 760,000 BTU/hr with up to 2500 CFM per heater. An ample fuel tank allows the unit to run from 40 to 74 hours between refuels.

Like all of our industrial heaters, the ES1000 is Built Arctic Tough to provide maximum heat with minimum downtime for your oilfield, construction, or agricultural worksites. Get one today!

Features & benefits

• Diesel engine generator set with dual indirect-fired forced-air heaters
• 760,000 BTU maximum heat output with up to 2500 CFM per burner
• 40 to 74 hour run time depending on burner usage
• Kubota engine with Mecc Alte generator end

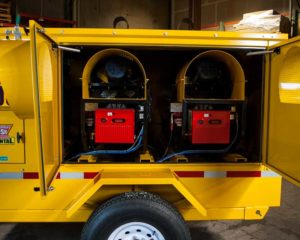

• Flagro FVO-400 heaters with Riello 40 burners

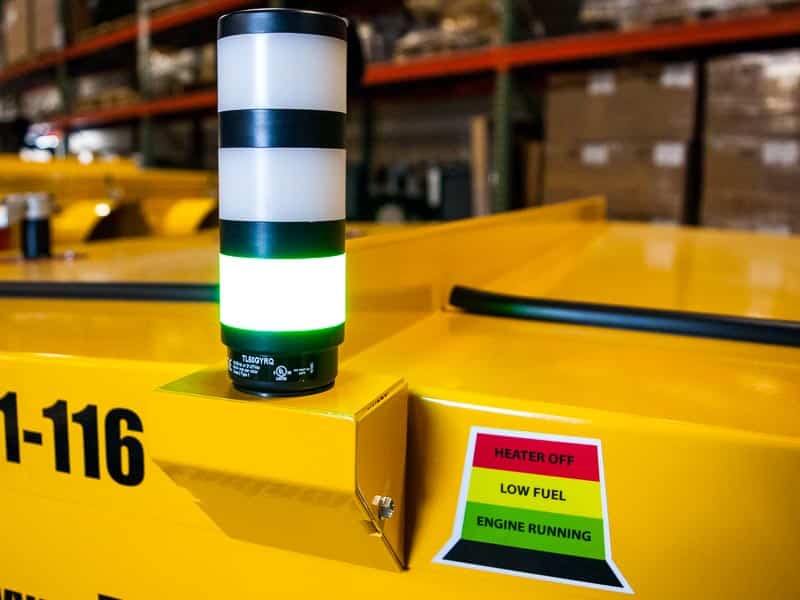

• Three-color beacon light indicates engine, burner, fuel status

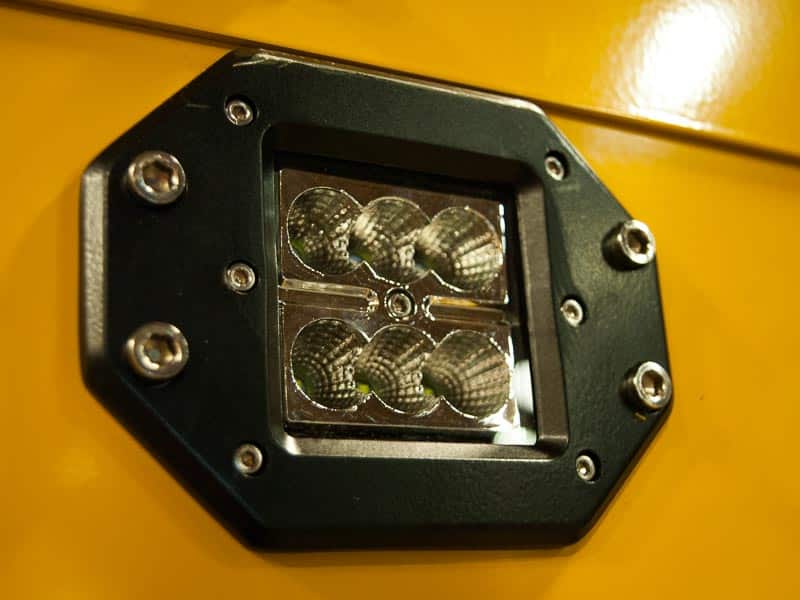

• Seven bright 18W (1260 lumens) LED exterior floodlights

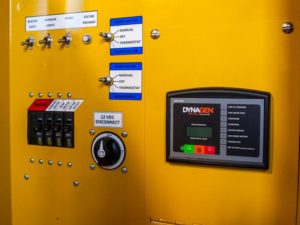

• Interior and control panel lights
• 120V GFCI power outlet
• Emergency shutdown switch
• Design integrated lifting bail
• Input jack for optional remote thermostat

Quality construction

• Heat exchanger surfaces are constructed from 304 stainless steel for extended life
• Environmentally responsible construction that features 160% secondary fluid containment
• DOT certified fuel tank
• ETL Listed, conforming to UL and CSA standards

Easy service by design

• Easy access engine compartment facilitates ease of service functions
• Standard industrial components ensure widespread parts availability

Available mounting

• Trailer mounted for portability

Options

• Remote thermostat to adjust heater output
• Bolt-on fork pockets
• Duct storage

Specifications

Heater
Max burner output (Dual)	760,000 BTU/hr
Burners	Riello 40 F10
Heat exchange material	304 Stainless steel
Fan motor	3/4 hp, 120V
Fan capacity	Max 5000 CFM @ 1/2 in wgOptional max 5600 CFM @ 2.5 in wg

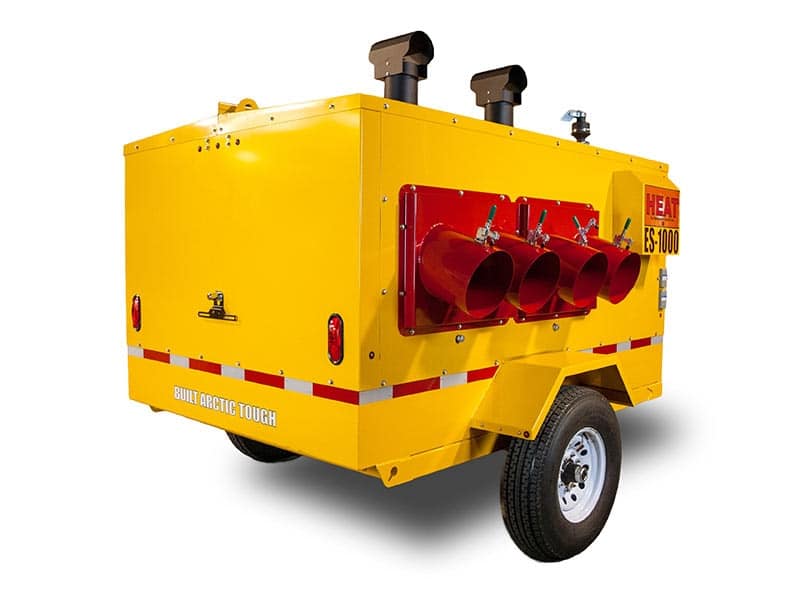

Duct outlets	Quad 12 in
Generator
Engine	Kubota D1105
Generator	Mecc Alte
Engine continuous power	8 kW
Main breaker rating	50A
Voltage	240V / 120V
Auxillary power receptacle	20A, 120V, 60Hz
Fuel storage
Capacity	240 gal [910 L]
Seconday containment	160%
DOT classification	UN IBC
Fuel type
ES1000	ULSD
Firing rate
Single	3.25 gph [12.3 lph] max
Dual	6 gph [22.7 lph] max
Weight
Dry	4800 lb [2180 kg]
Wet	6500 lb [2948 kg]

Accessories

Heater ducting

• Jetflex by Engineered Performance Ducting
• ES1000 outlet: 4 x 12″, 2 x 16″, or 2 x 20″ diameter
• ES1000 inlet: 2 x 20″ diameter
• Available in 25 foot length
